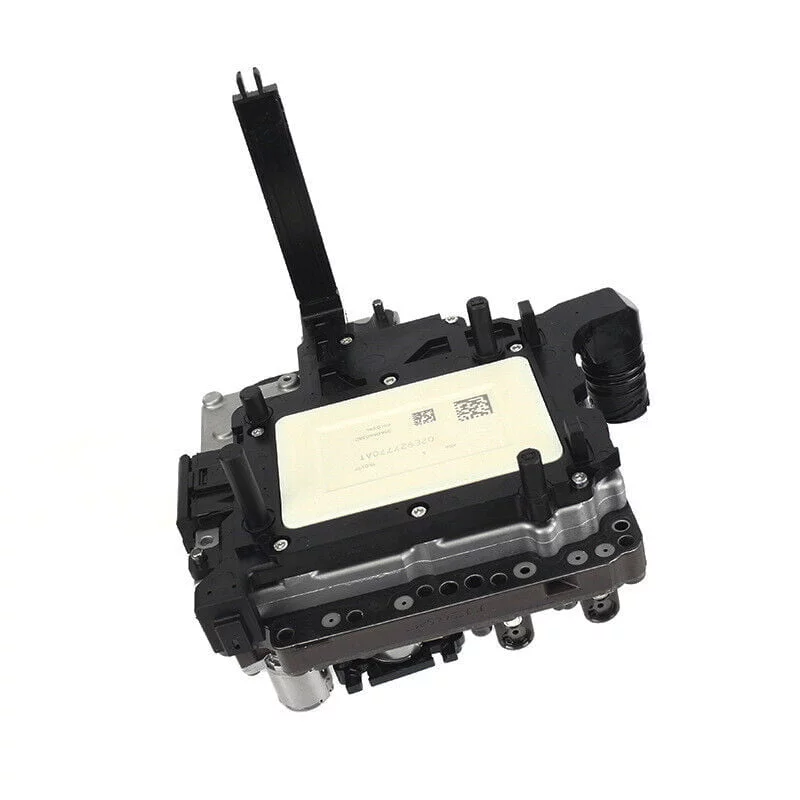

The VW and Audi vehicles equipped with the DSG (Mechatronic) 6-speed gearbox system commonly experience a significant problem with the transmission control module/conductor plate. The issue often presents as an intermittent flashing of the P R N D S light and the gearbox going into neutral (N), rendering it unable to select forward or reverse gears. In some cases, the problem resolves temporarily after cooling down, but it will eventually become more permanent if not addressed promptly.

Main dealerships usually resort to purchasing expensive new units from the manufacturer, which come with a mere 1-year warranty. However, this approach overlooks the root cause of the problem, leading to the same defect reoccurring after the short warranty period.

We have a more consumer-friendly solution – rebuilding the original unit with engineering improvements to prevent future failures.

Affected Vehicles:

  • Volkswagen Beetle 2003 – 2008
  • Volkswagen Caddy 2003 – 2010
  • Volkswagen CC 2013 – 2015
  • Volkswagen Eos 2006 – 2010
  • Volkswagen Golf 2003 – 2017
  • Volkswagen Passat 2005 – 2018
  • Volkswagen Scirocco 2008 – 2018
  • Volkswagen Sharan 2010 – 2015
  • Volkswagen Touran 2003 – 2010
  • Audi A3 2003 – 2013
  • Audi S3 2009 – 2016
  • Audi TT 2003 – 2008

Common Failure Symptoms:

  • No forward or reverse gears
  • Dropping out of selected gear
  • PRNDS light flashing
  • No communication to the gearbox ECU

Common Fault Codes:

  • P0751 17135 – Shift Solenoid 1 (N88) Short To Ground
  • P0756 17140 – Shift Solenoid 2 (N89) Short To Ground
  • P0761 17145 – Shift Solenoid 3 (N90) Short To Ground
  • P0766 17150 – Shift Solenoid 4 (N91) Short To Ground
  • P0746 17130 – Pressure Control Solenoid 1 (N215) Short To Earth
  • P0776 17160 – Pressure Control Solenoid 2 (N216) Short To Earth
  • P0716 17100 – Transmission Input Speed Sensor (G182) Implausible Signal
  • P0722 17106 – Transmission Output Speed Sensor (G195): No Signal
  • P1707 18115 – Interference In Mechatronic Module

Test and Rebuild: Our expert technicians identify internal faults using HIL testing rigs and then rebuild the DSG mechatronic unit with top-rated components. Rigorous post-rebuild testing under real-world conditions ensures the unit’s durability and performance.

Programming: You won’t need any coding after receiving the unit from us, as all programming is retained during the test and rebuild process.

Choose ImmoTools Cyprus for your VW & Audi DSG Gearbox TCU needs, and experience smooth gear changes and reliable performance. For further information or if you have any questions about our services, please don’t hesitate to contact us.
